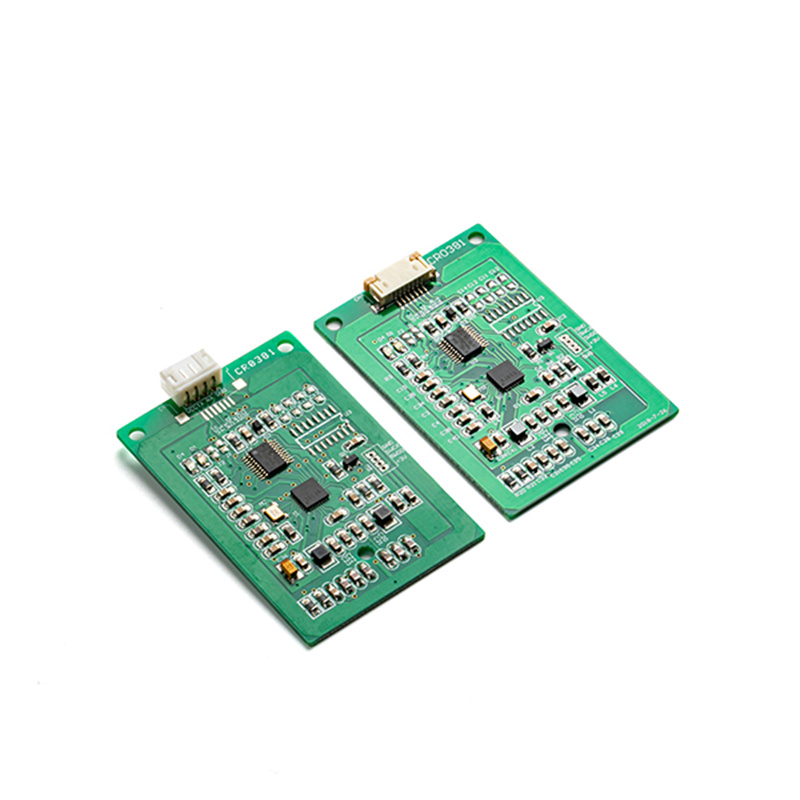

CR0381A rfid Reader module, MIFARE® 1K 4K Ultralight® C

Short Description:

Product number: CR0381A Rfid Reader Module, MIFARE® 1K 4K Ultralight® C

product feature: • Power Supply: 3.0V~3.6V Or 4.5V~5.5V , 80-100mA
Core: ARM® 32-Bit Cortex™-M0 CPU,
Frequency Up To 48 MHz
Memories 16 Kbytes Of Flash Memory
4 Kbytes Of SRAM With HW Parity Checking
• Power Supply: 2.8V~3.6V(CR0131L ) Or 4.5V~5.5V (CR0131), 80-100mA
• Interface: 232 TTL (CR0131A 01), IIC (CR0131A 02) Update To 400K
• Transmission Speed: 19200 Bps (2400 ~115200 Setting )
• R/W Distance Of Up To 60mm (Up To 100mm With Bigger Antenna Size), Depending On TAG
• Storage Temperature: -60 ºC ~ +150ºC
• Operating Temperature: -40 ºC ~ +85 ºC

Send email to us

Product Detail

Product Tags

Basic Information

UART / RS232 NFC Reader Module Ntag203 Ntag213 Ntag215 Ntag216
CR0381A is ISO14443 TypeA reader/writer supports NFC Ntag213 Ntag215 Ntag216 sle66r01P tags
MIFARE® and ISO 14443 A Cards type like MIFARE® 1K ,MIFARE® 4K , MIFARE Utralight® FM1108 TYPE A C=CL

Application scopes

Access controls
Admission control
Master and user authentication control
Time and attendance
Pre-payment
Ticketing
Prepaid parking / meal coupon
Checking the balance & re-loading an ePurse
Home security & Anti-crime application
Admission control
Master and user authentication control
Time and attendance
Pre-payment
Ticketing
Prepaid parking / meal coupon
Checking the balance & re-loading an ePurse
Home security & Anti-crime application

CR0381A Descripetion

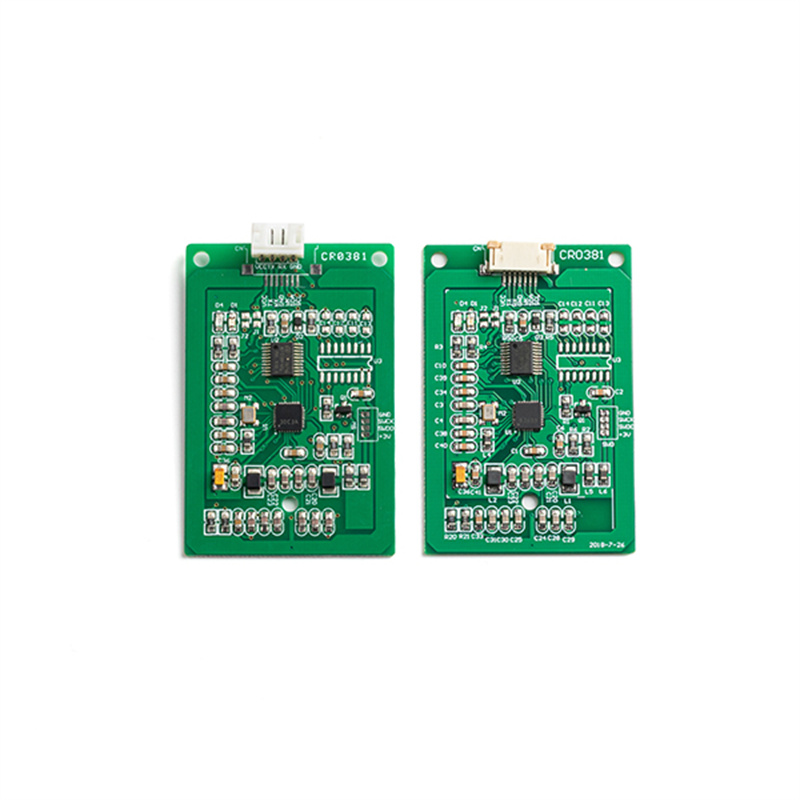

CR0381 Reader Module
Weight	12g
Dimensions	40× 60(mm)
Working Temperature	-25 － +80C
Interface	UART SPI
Frequency	13.56MHz
Suitable	MIFARE® 1k/4K,UlTRALIGHT ,NTAG ,ULTRALIGHT C,FM1108
SDK	Windows sample Code , Communication Protocol
Voltage	2.5-5.5V
