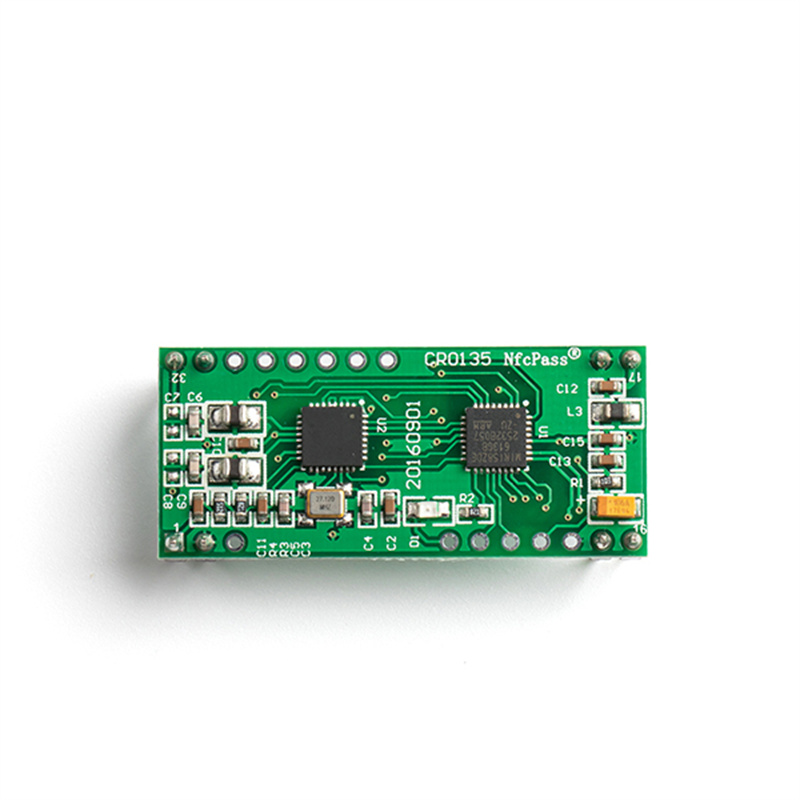

CR0135 TYPE A B HF reader Module

Short Description:


  • Product number: CR0135
  • product feature: Voltage: 3.0-5.5V
  • Dimensions: 38.2*38.2*4mm
  • Frequency: 13.56M
  • InterFace: UART
  • MCU: ARM M0 32BITS , 32K Flash
  • Standard: ISO14443 A B
  • Product Detail

    Product Tags

    NFC 13.56 Mhz RFID Reader Module CR0135A

    • MIFARE® 1k/4K, UltraLight ,ULTRALIGHT C,
    • NTAG203,NTAG213 ,NTAG215,NTAG216
    • 25TB512 ,25TB04K,25TB176
    CR0135 TYPE A B HF reader Module_04
    CR0135 TYPE A B HF reader Module_03
    CR0135 TYPE A B HF reader Module_02

    Application scopes

    • e-Government
    • Banking & Payment
    • Access Control Time Attendance
    • Network Security
    • e-Purse & Loyalty
    • Transportation
    • Kiosk
    • Intelligent Meters

    CR0135A Descripetion

    Name CR0135A series Proximity Reader Module
    Weight 12g
    Dimensions 42*18(mm)
    Temperature -40一s+85C
    Interface COMS UART or IC
    Read Range up to 8cm
    Frequency 13. 56MHz
    Support ISO14443A
    MIFARE® 1K,MIFARE®4K, MIFARE Utralight®, MIFARE® DESFire,MIFARE® Pro,

    Ntag, IFARE Utralight®C,SLE66R35,Fm1108,TYPE A CPU card

    Power

    Requirement

    DC2.6- 5.5V ,70ma - 100ma
    MCU Core: ARM® 32- bit CortexTM -M0 CPU
    CR0135A CR0135B CR0136 CR9505F
    ISO14443A
    ISO14443B
    ISO15693

    CR0135 Serials&Similar Part Number Description

    Model Description Interface &Others
    CR0135A MIFARE® S50/S70,Ultralight®,FM1108,TYPE UART DC2.6~5.5V
    CR013Plus MIFARE® 1K/4K,Ultralight®,Ultralight®C,Mifare®Plus FM1108,TYPEA.Ntag,SLE66R01P,NFC typeA tags 2.6~5.5V2.6~3.6V
    CR0136D l.code sliTi 2k , SRF55V01, SRF55V02 ,SRF55V10,LRI2k,ISO15693 STD ! UART DC2.6~3.6V

    Service

    Our read-write module products provide excellent service to meet the needs and expectations of our customers. The following is a description of several important angles of our services:

    • High Quality: We are committed to providing high quality products and services. We employ advanced manufacturing techniques and strict quality control processes to ensure the performance and reliability of each read-write module. Our products are rigorously tested and inspected to ensure they can operate stably for a long time and meet the needs of various applications.
    • Competitive Price: We realize that price competition is an important factor in the market. Therefore, we strive to provide competitive prices to our customers. We cooperate with suppliers to control costs and provide cost-effective products. Whether you are a large enterprise, an SME, or an individual developer, we have solutions at the right price so you get the best value for what you pay for.
    • 24 Hours Quick Feedback: We value customers' needs and questions and ensure timely response. We provide 24/7 customer support and technical services to ensure you have the best experience when using our products. Our professional team will reply your inquiry in the shortest time, solve your problems and provide the help you need.
    • Free SDK: For the convenience of customers, we provide a free software development kit (SDK). This SDK contains rich development resources and documents, which can help you quickly integrate our read-write module products into your application. You will receive the support and guidance necessary to make the best use of our products and realize your ideas and projects.
    • ODM/OEM Custom Design: We provide ODM (Original Design Manufacturing) and OEM (Original Equipment Manufacturing) custom design services. Our professional team has rich technical experience and professional knowledge, and can design and customize read-write module products according to customers' specific needs and requirements. Whether it is customized appearance, specific functions, interface requirements, or customized software development, we can meet the needs of customers and provide professional customized design solutions.

    To sum up, our services not only provide high-quality products and competitive prices, but also include 24-hour quick feedback, free SDK, and ODM/OEM custom design options. We are committed to providing excellent service to our customers, meeting their needs and being their reliable partner.

    Similar product Part number reference

    Model Description InterFace

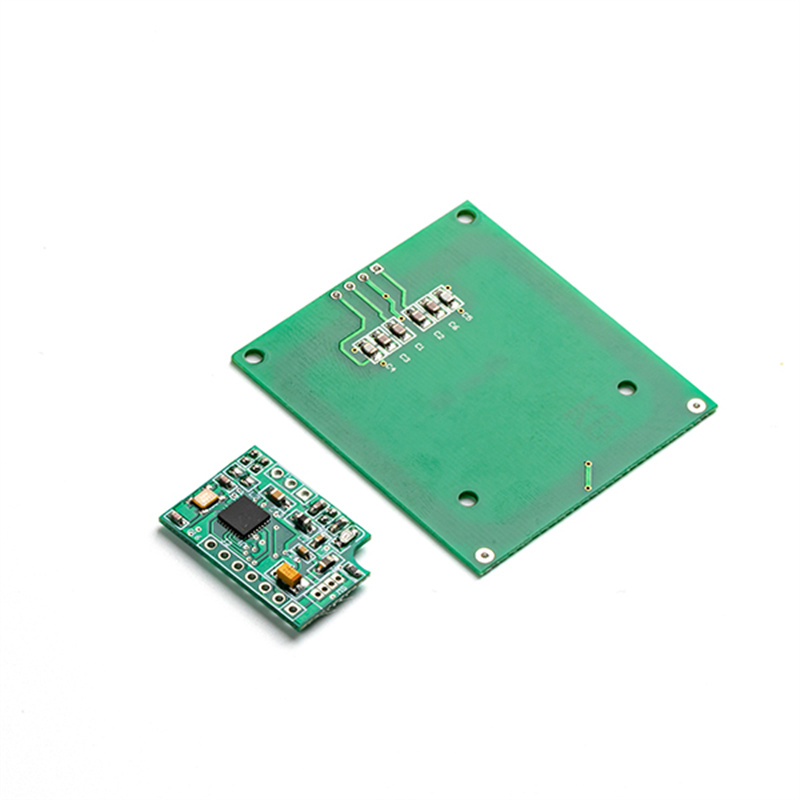

    CR0301A MIFARE® TypeA reader modulMIFARE® 1K/4K,Ultralight®,Ntag. Sle66R01Pe UART & IIC2.6~3.6V
    CR0285A MIFARE® TypeA reader moduleMIFARE® 1k/4k,Utralight®,Ntag. Sle66R01P UART OR SPI2.6~3.6V
    CR0381A MIFARED TypeA reader moduleMIFARE® S50/S70,Ultralight®.Ntag. Sle66R01P UART
    CR0381D I.code sli,Ti 2k , SRF55V01, SRF55V02 ,SRF55V10,LRI2K,ISO15693 STD UART DC 5V OR|DC 2.6~3.6V
    CR8021A MIFARE®TypeA reader moduleMIFARE® S 50/S70,Ultralight®,Ntag. Sle66R01P RS232 or UART
    CR8021D .code sli.Ti 2k,SRF55V01, SRF55V02 ,SRF55V10,LRI2K,ISO15693 STD RS232 OR UARTDC3VOR5V
    CR508DU-K 15693 UID Hex output USB EmulationKeyboar
    CR508AU-K TYPE A ,MIFARE® UID or Block Data output USB EmulationKeyboard
    CR508BU-K TYPE B UID Hex output USB EmulationKeyboard
    CR6403 TYPEA(MIFARE Plus®,Ultralight® C) + TYPEB+ISO15693 + Smart Card UART RS232 USB|IC
    CR6403 TYPEA(MIFARE Plus®,Ultralight® C)+ TYPEBISO15693 + Smart Card+ USB RS232
    CR9505 TYPEA(MIFARE Plus®,Ultralight® C)+ TYPEBISO15693 UART

    COMMENT:  MIFARE® and MIFARE Classic® are trademarks of NXP B.V.
