CR314 Low Power Cost ISO15693 Reader module
NFC 13.56Mhz card reader module CR314
CR314A
MIFARE® 1k/4K, UltraLight, Ntag, NTAG203, NTAG213, NTAG215, NTAG216
CR314D
25TV512 ,25TV02K,25TV04K
Application scopes
- e-Government
- Banking & Payment
- Access Control Time Attendance
- Network Security
- e-Purse & Loyalty
- Transportation
- Kiosk
- Intelligent Meters
Technical parameter
- Power supply: 2.5V--3.6V, 40-105mA
- After dormancy current:12UA
- Interface: RS232 or TTL232
- Transmission speed: Default 19200 bps
- R/W distance of up to 60mm (up to 100mm with bigger antenna size), depending on TAG
- Storage temperature: -40 ºC ~ +85 ºC
- Operating temperature: -40ºC ~ +70 ºC
- ISO14443A ISO14443B ISO15693
feature
CR314 reader card module uses RFID IC ST25R3911 Or ST25R668 and ARM0 32K Flash MCU
- ISO 18092 (NFCIP-1) Active P2P
- ISO14443A, ISO14443B, ISO15693 and FeliCa™
- Automatic antenna tuning system providing tuning of antenna LC tank
- Automatic modulation index adjustment
- AM and PM demodulator channels with automatic selection
- User selectable and automatic gain control
- Transparent and stream modes to implement MIFARE™ classic compliant or other custom protocols
- Possibility of driving two antennas in single ended mode
- Oscillator input capable of operating with 13.56 MHz or 27.12 MHz crystal with fast start-up
- 6 Mbit/s SPI with 96 bytes FIFO
- Wide supply voltage range from 2.4 V to 5.5 V
- Wide temperature range: -40 °C to 125 °C
- QFN32, 5 mm x 5 mm package
ISO 18092 (NFCIP-1) initiator, ISO 18092 (NFCIP-1) active target, ISO 14443A and B reader (including high bit rates), ISO 15693 reader and FeliCa™ reader.
Default communication Settings
The communication protocol is byte oriented.
Both sending and receiving bytes are in hexadecimal format.
The communication parameters are as follows,
Baud rate: 19200 bps
Data: 8 bits
Stop: 1 bit
Parity: None
Flow control: None

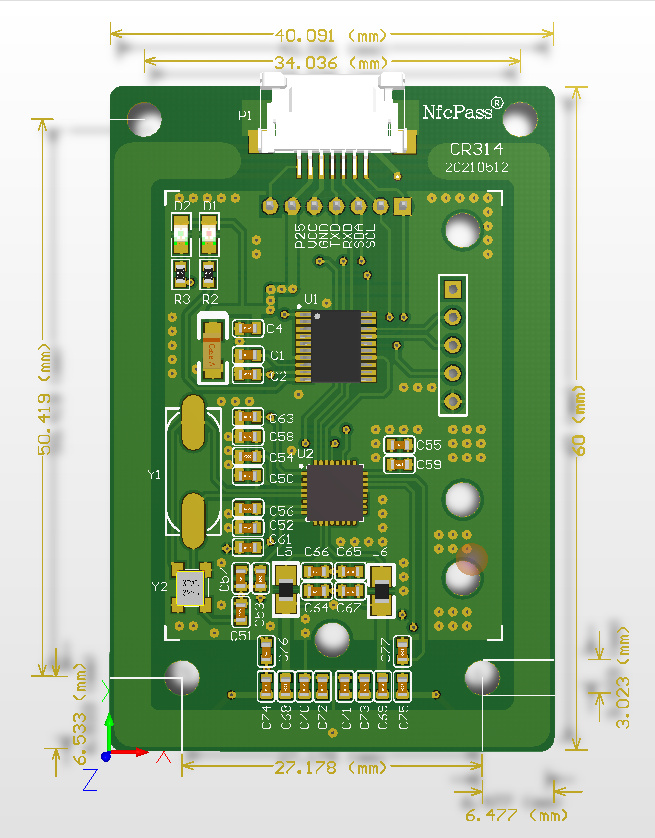

Dimensions and related parameters
| name | CR314 series Proximity Reader Module | |||
| Net weight | 12g | |||
| dimension | 40*60(mm) | |||
| Operating temperature | -40 ~ +85℃ | |||
| Interface | COMS UART or IC, Default UART | |||
| Card reading distance | up to 8cm, ISO15693 15Cm | |||
| frequency | 13. 56MHz | |||
| Applicable card type | Depends on the program version | |||
| MIFARE® 1K, MIFARE®4K, MIFARE Utralight®,Ntag, MIFARE Utralight®C, SLE66R35, Fm1108, TYPE A CPU card25TB512, 25TB04K, 25TB176ISO15693 I.code SLIx, I.code SLIs, TI2k, TI256, ST25TV512/2k/04K, ST25DV512/2k/04K | ||||
| Operating voltage, current | DC2.5- 3.6V, 40ma - 100ma , Sleep Mode 5uA | |||
| MCU | Core: ARM® 32- bit CortexTM -M0 CPU | |||
| CR314A | CR314B | CR314D | CR9505F | |
| ISO14443A | ✔ | ✔ | ||
| ISO14443B | ✔ | ✔ | ||
| ISO15693 | ✔ | ✔ | ||
CR314 Similar product description
|
Model |
Description |
Interface & Others |
|
CR0385A/B |
MIFARE® S50/S70, Ultralight®, FM1108, TYP 25TB512, 25TB04K, 25TB176 |
UART DC 2.6~5.5V |
|
CR9505 |
MIFARE® 1K/4K, Ultralight®, Ultralight®C, Mifare®Plus FM1108, TYPE A.Ntag, SLE66R01P, NFC typeA tags l.code sliTi 2k, SRF55V01, SRF55V02, SRF55V10, LRI 2k, ISO15693 STD 25TB512, 25TB04K, 25TB176 |
2.6~5.5V
|
|
CR0381D |
l.code sliTi 2k, SRF55V01, SRF55V02, SRF55V10, LRI 2k, ISO15693 STD |
UART DC 2.6~3.6V
|
Other similar products
| Model | Description | InterFace |
| CR0301A | MIFARE® TypeA reader modulMIFARE® 1K/4K, Ultralight®, Ntag. Sle66R01Pe | UART & IIC2.6~3.6V |
| CR0285A | MIFARE® TypeA reader moduleMIFARE® 1k/4k, Utralight®, Ntag. Sle66R01P | UART OR SPI2.6~3.6V |
| CR0381A | MIFARED TypeA reader moduleMIFARE® S50/S70, Ultralight®.Ntag. Sle66R01P | UART |
| CR0381D | I.code sli, Ti 2k, SRF55V01, SRF55V02, SRF55V10, LRI2K, ISO15693 STD | UART DC 5V OR|DC 2.6~3.6V |
| CR8021A | MIFARE®TypeA reader moduleMIFARE® S 50/S70, Ultralight®, Ntag. Sle66R01P | RS232 or UART |
| CR8021D | .code sli.Ti 2k, SRF55V01, SRF55V02, SRF55V10, LRI2K, ISO15693 STD | RS232 OR UARTDC3VOR5V |
| CR508DU-K | 15693 UID Hex output | USB EmulationKeyboar |
| CR508AU-K | TYPE A, MIFARE® UID or Block Data output | USB EmulationKeyboard |
| CR508BU-K | TYPE B UID Hex output | USB EmulationKeyboard |
| CR6403 | TYPEA(MIFARE Plus®, Ultralight® C) + TYPEB+ISO15693 + Smart Card | UART RS232 USB|IC |
| CR6403 | TYPEA(MIFARE Plus®, Ultralight® C)+ TYPEBISO15693 + Smart Card+ | USB RS232 |
| CR9505 | TYPEA(MIFARE Plus®, Ultralight® C)+ TYPEBISO15693 | UART |
COMMENT: MIFARE® and MIFARE Classic® are trademarks of NXP B.V. Function and model please check with our technical service department.
