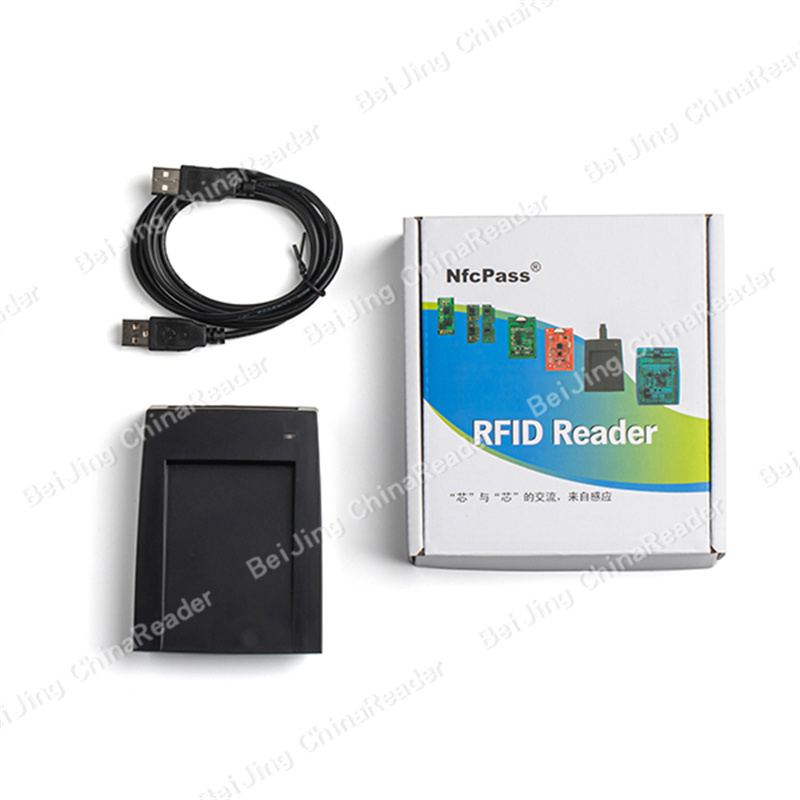

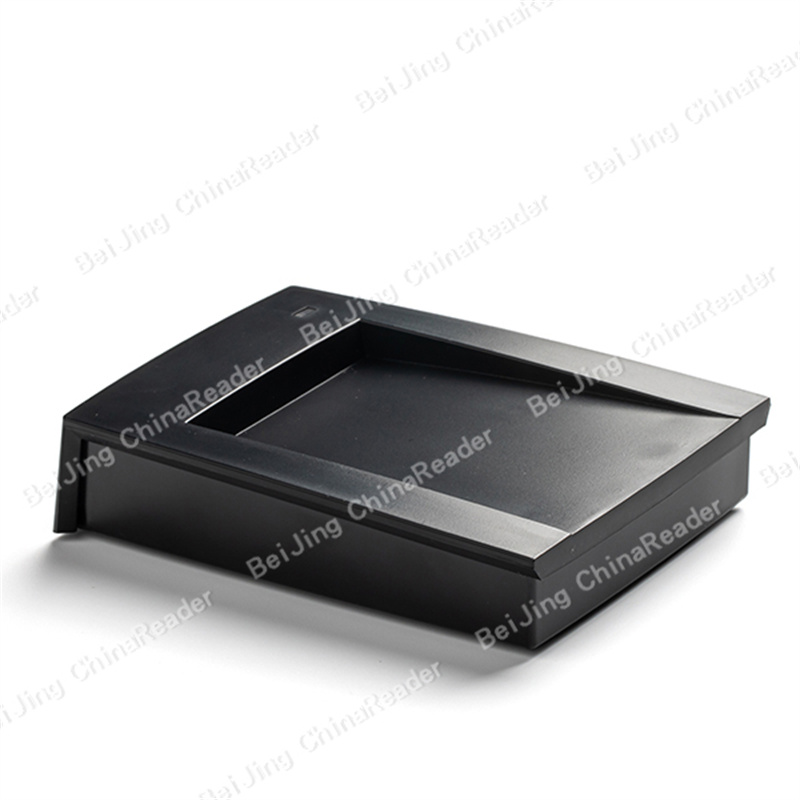

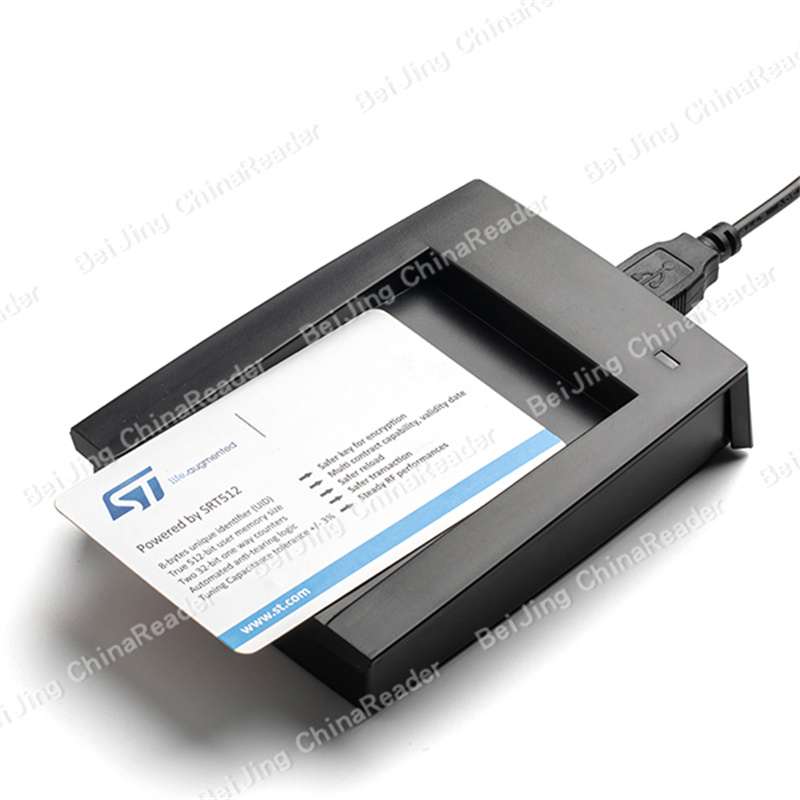

CR5011AU/CR5011A 13.56Mhz NFC TYPE A HF RFID Reader
CR5011A 13.56Mhz NFC TYPE A HF RFID Reader, Contactless NFC RFID Reader
CR5011A is a 13.56 MHz Contactless (RFID) Reader writer, it supports MIFARE® and ISO 14443 A Cards type like MIFARE® 1K , MIFARE® 4K , MIFARE Utralight®
SLE66R01P FM1108 SRF66R35 C=TL Ntag serials.
ISO15693 I.CODE SLI, I.CODE SLIX,TI2K,TI256,ST25TV02K,ST25TV512
Application scopes
- e-Government
- Banking & Payment
- Access Control
- Network Security
- e-Purse & Loyalty
- Transportation
- kiosk
CR5011A TYPE A Reader Description
| Name | CR5011 series Proximity Reader Module | |||
| Weight | 240 g | |||
| Dimensions | 110*80*26(mm) | |||
| Temperature | -20 ~ +85 C | |||
| Interface | USB Virtual RS232, RS232 | |||
| Read Range | up to 8cm | |||
| Frequency | 13. 56MHz | |||
| Support | ISO14443A | |||
| MIFARE® 1K，MIFARE®4K, MIFARE Utralight®,Ntag, Fm1108,I.code SLI,I.code Slix,TI2048,TI256 | ||||
| Power Requirement | USB 5V ,70ma - 100ma | |||
| MCU | Core: ARM@ 32- bit CortexTM -M0 CPU | |||
| CR522A | CR523 | CR5011 | CR9505F | |
| ISO14443A | ✔ | ✔ | ✔ | ✔ |
| ISO14443B | ✔ | ✔ | ||
| ISO15693 | ✔ | ✔ |
CR5011 Serials&Similar Part Number Description
| Model | Description | Interface &Others |
| CR522 | TYPE A/B, MIFARE® 1K/4K, Ultralight®C, FM1108, | USB Vitrual RS232, RS232 |
| CR9506 | ISO15693 TYPE A/B: MIFARE® 1K/4K, Ultralight®C, FM1108,
ST25TB512, ST25TB04K ISO15693 l.code sli, Ti 2k, SRF55V01, SRF55V02, SRF55V10 ST25TV512, ST25TV02K |
USB Vitrual RS232, RS232 |
Similar Product List for reference
| Model | Description | InterFace |
| CR522A/AU | TYPEA(Ntag,Ultralight® C) + TYPEB | USB Virtual Rs232,RS232 |
| CR508DU-K | 15693 UID Hex output | USB EmulationKeyboar |
| CR508AU-K | TYPE A ,MIFARE® UID or Block Data output | USB EmulationKeyboard |
| CR508BU-K | TYPE B UID Hex output | USB EmulationKeyboard |
| CR6403 | TYPEA(MIFARE Plus®,Ultralight® C) + TYPEB+ISO15693 + Smart Card | UART RS232 USB|IC |
| CR9505 | TYPEA(MIFARE Plus®,Ultralight® C)+ TYPEBISO15693 | UART |
| CR9506 | TYPEA(MIFARE Plus®,Ultralight® C)+ TYPEBISO15693 | UART |
| USB Virtual Rs232,RS232 |
COMMENT: MIFARE® and MIFARE Classic® are trademarks of NXP B.V.
Service
1. High quality
2. Competitive price
3. 24 Hours Quickly Feedback
4. Free SDK
5. ODM/OEM Customized Design
COMMENT: MIFARE® and MIFARE Classic® are trademarks of NXP B.V.
