cr9505 iso14443 iso15693 Rfid reader module

Short Description:

CR9505 NFC Reader Module
ST32G0 With ST25R3911 RFID
ISO14443 TYPE A/B ,T=CL
ISO15693
P2P
Wide Working Temperature


Product Detail

Product Tags

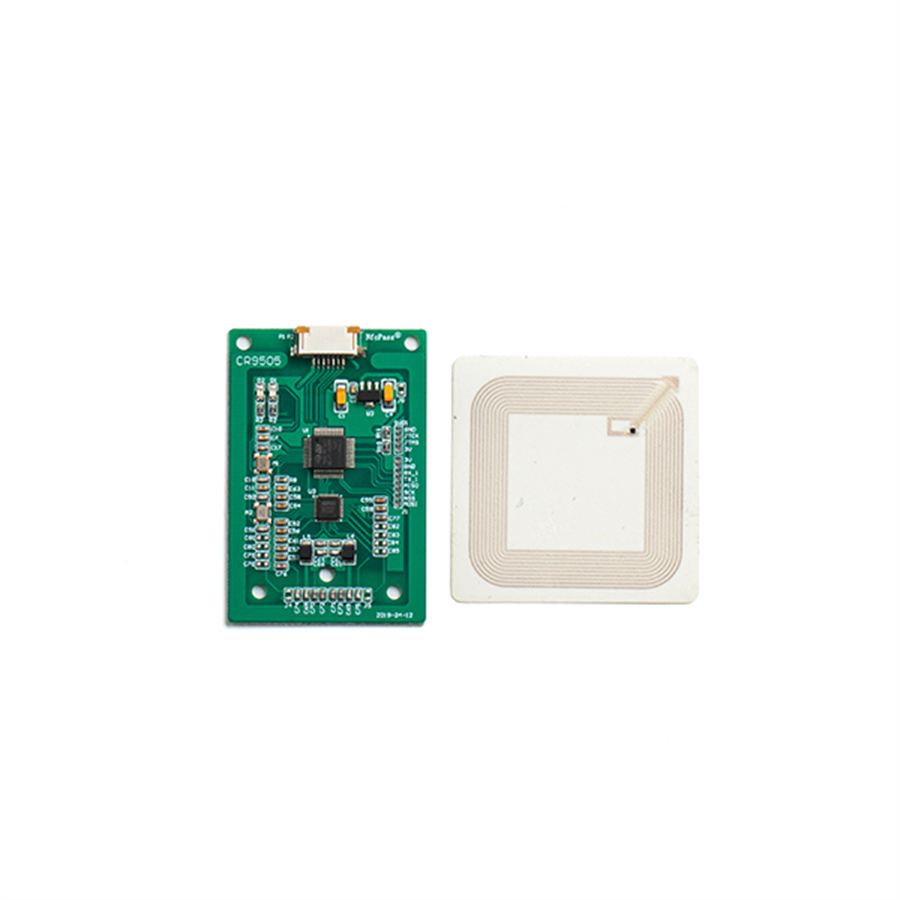

NFC 13.56 Mhz RFID Reader Module CR9505A

  • MIFARE® 1k/4K, UltraLight ,ULTRALIGHT C,
  • NTAG203, NTAG213, NTAG215, NTAG216
  • 25TB512, 25TB04K, 25TB176
CR9505_02
CR9505_04
CR9505_03

Application scopes

Our read-write module product is a versatile device that finds applications across various sectors. It caters to e-Government, banking and payment, access control and attendance, network security, electronic wallet and membership card, transportation, self-service terminal, and smart meter. In each of these domains, the product offers unique benefits and capabilities:

  • In the realm of e-Government, our read-write module products empower the implementation of essential e-government services. These include electronic identity verification, electronic signature deployment, and secure transmission of government documents and data. By leveraging our products, governmental agencies can boost operational efficiency and provide citizens with more convenient and accessible public services.
  • Our products also make substantial contributions to the banking and payment sector. They are capable of supporting diverse payment methods, including contact and contactless payment cards. This not only facilitates faster and more secure transactions but also aids banks and financial institutions in enhancing customer satisfaction and safeguarding users' financial information.
  • In the field of access control and time attendance, our read-write module products can be used to manage employee access records and working hours. It can be integrated with access control system and time attendance system to provide accurate employee attendance data, ensuring the safety of the enterprise and accurate working time records. In the field of cybersecurity, our products are used for authentication and access control, protecting sensitive data and network resources from unauthorized access. It can be used in various network devices and systems, providing advanced security layers to ensure the confidentiality and integrity of information.
  • In the field of electronic wallet and loyalty card, our products can be used to store and process the information of electronic wallet and loyalty card. It can be integrated with a merchant's POS system to help merchants manage loyalty cards and rewards programs to provide customers with a personalized shopping experience.
  • In the field of transportation, our read-write module products can be used to implement electronic ticketing and bus card swiping systems. It can be integrated with public transportation and toll booths to provide convenient and fast payment methods and improve the travel experience of passengers.
  • Our products are designed to cater to the needs of self-service terminals, encompassing a wide range of applications including vending machines, self-service kiosks, and self-checkout systems. These versatile solutions offer seamless payment processing, efficient membership card scanning, and reliable identity verification capabilities, enhancing the convenience and ease of use for users engaging in self-service interactions.
  • In the realm of smart meter technology, our read-write modules find immense utility in smart grids and energy management setups. They seamlessly integrate with smart meters and energy monitoring equipment, enabling accurate tracking and seamless transmission of power consumption data. This not only facilitates precise measurement of energy consumption but also empowers users to effectively manage and conserve energy resources, thereby promoting sustainable energy practices.

Simply put, our read-write module products cater to diverse industries and offer secure, efficient, and user-friendly solutions. They have widespread applications in e-government, finance, access control, network security, e-wallet, transportation, self-service terminals, and smart meter systems. No matter the field, our products guarantee dependable performance and deliver an exceptional user experience, ensuring customer satisfaction across the board.

Technical Specification

  • Power supply: 2.5V--3.6V, 40-105mA
  • After dormancy current:12UA
  • Interface: RS232 or TTL232
  • Transmission speed: Default 19200 bps
  • R/W distance of up to 60mm (up to 100mm with bigger antenna size), depending on TAG
  • Storage temperature: -40 ºC ~ +85 ºC
  • Operating temperature: -30ºC ~ +70 ºC
  • ISO14443A ISO14443B ISO15693

CR9505 Module EMBED High quality RFID IC CR95HF and STM32G070 MCU

Features

  • ISO 18092 (NFCIP-1) Active P2P
  • ISO14443A, ISO14443B, ISO15693 and FeliCa™
  • Automatic antenna tuning system providing tuning of antenna LC tank
  • Automatic modulation index adjustment
  • AM and PM demodulator channels with automatic selection
  • User selectable and automatic gain control
  • Transparent and stream modes to implement MIFARE™ classic compliant or other custom protocols
  • Possibility of driving two antennas in single ended mode
  • Oscillator input capable of operating with 13.56 MHz or 27.12 MHz crystal with fast start-up
  • 6 Mbit/s SPI with 96 bytes FIFO
  • Wide supply voltage range from 2.4 V to 5.5 V
  • Wide temperature range: -40 °C to 125 °C
  • QFN32, 5 mm x 5 mm package

ISO 18092 (NFCIP-1) initiator, ISO 18092 (NFCIP-1) active target, ISO 14443A and B reader (including high bit rates), ISO 15693 reader and FeliCa™ reader.

  • Core: Arm® 32-bit Cortex®-M0+ CPU, frequency up to 64 MHz -40°C to 85°C operating temperature Memories – 128 Kbytes of Flash memory – 36 Kbytes of SRAM (32 Kbytes with HW parity check)
  • Including 3DES AES Soft algorithm encryption Support Ultralight C,MIFARE™ Plus,Desfire Read Write

Communication setting

  • The communication method used operates on a byte-by-byte basis. Both the data being sent and received are represented in hexadecimal format.
  • The specific parameters of this communication are as follows:
  • Baud rate: 19200 bits per second.
  • Data: Each byte consists of 8 bits.
  • Stop: After each byte, a single bit is used as a stop signal.
  • Parity: No additional bits are used for error detection.
  • Flow control: There is no mechanism in place to control or regulate the flow of data.

Dimensions & Other Description

Name CR9505A series Proximity Reader Module
Weight 12g
Dimensions 40*60(mm)
Temperature -40 ~ +85℃
Interface COMS UART or IC
Read Range up to 8cm
Frequency 13. 56MHz
Support ISO14443A
MIFARE® 1K,MIFARE®4K, MIFARE Utralight®, MIFARE® DESFire, MIFARE® Pro,
Ntag, MIFARE Utralight®C, SLE66R35, Fm1108, TYPE A CPU card
25TB512, 25TB04K,25TB176
ISO15693 I.code SLIx, I.code SLIs ,TI2k ,TI256,ST25TV512/2k/04K, ST25DV512/2k/04K
Power Requirement DC2.5- 3.6V, 40ma - 100ma
MCU Core: ARM® 32- bit CortexTM -M0 CPU
CR0385A CR0385B CR0381 CR9505F
ISO14443A
ISO14443B
ISO15693

CR9505 Serials&Similar Part Number Description

Model Description  Interface & Others
CR0385A/B MIFARE® S50/S70, Ultralight®, FM1108, TYP
25TB512, 25TB04K, 25TB176
UART DC b2.6~5.5V
CR9505 MIFARE® 1K/4K, Ultralight®, Ultralight®C, Mifare®Plus FM1108, TYPE
A.Ntag, SLE66R01P, NFC typeA tags
l.code sliTi 2k, SRF55V01, SRF55V02, SRF55V10, LRI
2k, ISO15693 STD
25TB512, 25TB04K, 25TB176
2.6~5.5V

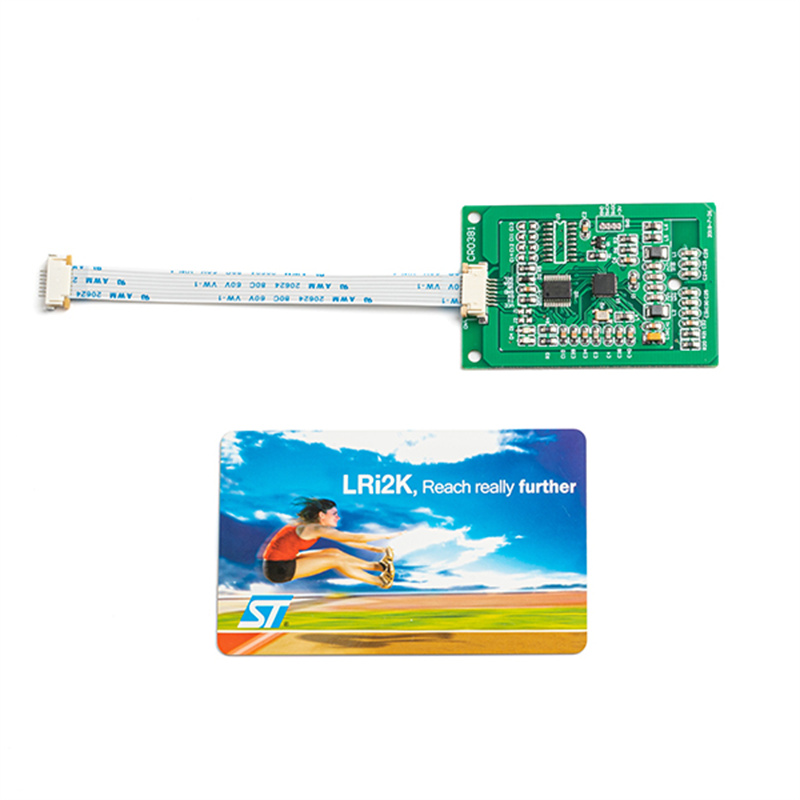

CR0381D l.code sliTi 2k, SRF55V01, SRF55V02, SRF55V10, LRI2k, ISO15693 STD UART DC 2.6~3.6V

Similar product Part number reference

Model Description InterFace
CR0301A MIFARE® TypeA reader modul
MIFARE® 1K/4K,Ultralight®,Ntag. Sle66R01Pe
UART & IIC
2.6~3.6V
CR0285A MIFARE® TypeA reader module
MIFARE® 1k/4k,Utralight®,Ntag. Sle66R01P
UART OR SPI
2.6~3.6V
CR0381A MIFARED TypeA reader module
MIFARE® S50/S70,Ultralight®.Ntag. Sle66R01P
UART
CR0381D I.code sli,Ti 2k , SRF55V01, SRF55V02 ,SRF55V10,LRI
2K,ISO15693 STD
UART DC 5V OR
|DC 2.6~3.6V
CR8021A MIFARE®TypeA reader module
MIFARE® S 50/S70,Ultralight®,Ntag. Sle66R01P
RS232 or UART
CR8021D .code sli.Ti 2k,SRF55V01, SRF55V02 ,SRF55V10,LRI
2K,ISO15693 STD
RS232 OR UART DC3VOR5V
CR508DU-K 15693 UID Hex output USB Emulation Keyboar
CR508AU-K TYPE A ,MIFARE® UID or Block Data output USB Emulation Keyboard
CR508BU-K TYPE B UID Hex output USB Emulation Keyboard
CR6403 TYPEA(MIFARE Plus®,Ultralight® C) + TYPEB+
ISO15693 + Smart Card
UART RS232 USB |IC
CR6403 TYPEA(MIFARE Plus®,Ultralight® C)+ TYPEB
ISO15693 + Smart Card+
USB RS232
CR9505 TYPEA(MIFARE Plus®,Ultralight® C)+ TYPEB
ISO15693
UART
